Quick Start Guide

Smarter AI Dashcam

Components

1. Tamper-proof sensor

2. MicroSD card slot

3. SIM card slot

4. Reset button

5. Power port

6. Extension camera port

7. NFC sensor

8. Camera locking screw (x2)

9. Noise cancelling microphone

10. Driver accessible programmable emergency button

11. Cellular/Wi-Fi indicator

12. Cabin camera with Infrared illuminators

13. Mounting kit

14. Speaker

15. Road camera

16. Antenna

17. I/O cover

What’s Inside the Box

Smarter AI Dashcam

OBDII Power Cable

Hex Key

Mounting Kit

I/O Cover

Data Plan

Installation Guide

Setup Instructions

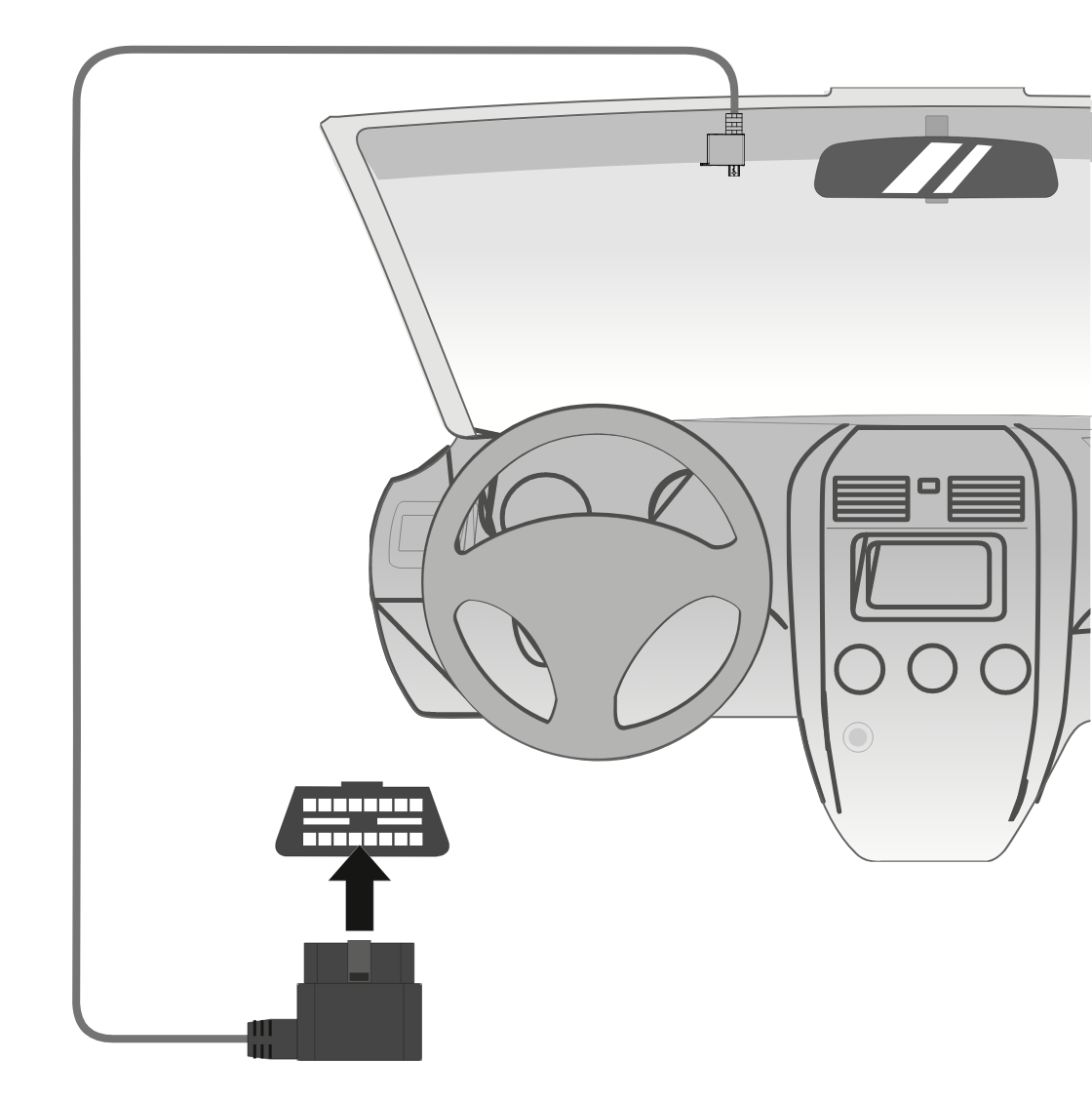

Connecting your Smarter AI Dashcam to the vehicle.

  • Insert the power plug of the OBD Cable into the dashcam.

  • Insert the OBDII plug of the cable into the OBDII port of the vehicle.

  • After plugging in the dashcam for the first time, please wait 4-5 min for the status LED to turn solid green.

Installing the Smarter AI Mobile App

  • Download and install the Smarter AI mobile app via the Android Play Store or the Apple App Store.

Logging in to your Smarter AI Mobile App

  • Tap ‘I’m an installer’ on the Smarter AI mobile app to sign up or sign in. You do not need to have an existing account and can use an unregistered email address to login.

Activating and Adjusting the Smarter AI Dashcam

  • Once logged in to the Smarter AI mobile app, tap ‘Activate Dashcam’.  Ensure the status LED on the dashcam is solid green and do not remove the adhesive strip on the mounting bracket. Go through the instructions and then tap next to scan the barcode.

  • Scan the barcode for the S/N of the dashcam and then tap next, you can also input the barcode manually.

  • Once the dashcam has been activated, tap ‘Adjust’ on the cabin camera thumbnail to adjust and mount the cabin camera. Follow the instructions in the bottom tiles and tap ‘Done’ when completed.

  • Move onto adjusting the road camera by tapping ‘Adjust’ on the road camera thumbnail. Follow the instructions in the bottom tiles and tap ‘Done’ when completed.

  • Once you’ve adjusted the road and cabin cameras, you can tap ‘Complete Installation’ to mark a successful install of the dashcam.

  • Install the I/O cover on top of the camera and tighten the screw with the hex key.

  • Hide any visible wiring by the placing the wire under the roof liner and behind the driver side A Pillar.

Web Dashboard

  • Manage and Operate your Dashcams from the Smarter AI Dashboard.
