Quick Start Guide

Smarter AI Dashcam G

What’s Inside the Box

Smarter AI Dashcam G

Installing the Smarter AI Mobile App

Positioning & Alignment

Smarter Cable G

  • Download and install the Smarter AI mobile app via the Android Play Store or the Apple App Store..

Tap Here to Download

Login as an Installer

Hex Key

Connecting your Smarter AI Dashcam to the Geotab GO9 device.

  • Connect one end of the Smarter cable G to the Geotab GO9 IOX port.

Login as a Fleet Admin

Mounting Kit

I/O Cover

  • Plug the GeoTab GO9 device into your vehicle’s OBDII port.

Setup Instructions

Installation Guide

Tap Here to Download

  • If installing a Smarter AI Dashcam G for the first time, ask your customer to create an installer account using your email address. Once created, you will receive a login link via email from Smarter AI.

  • If you are a fleet admin, you can login to the Smarter AI app with your existing credentials.

Logging to your Smarter AI Mobile App

Onboarding the camera

1. Tamper-proof sensor

2. MicroSD card slot

3. SIM card slot

4. Reset button

5. Power port

6. Extension camera port

7. NFC sensor

8. Camera locking screw (x2)

9. Noise cancelling microphone

10. Driver accessible programmable emergency button

11. Cellular/Wi-Fi indicator

12. Cabin camera with Infrared illuminators

13. Mounting kit

14. Speaker

15. Road camera

16. Antenna

17. I/O cover

18. Truck cable cap (optional)

Components

  • In the Cameras tab, tap the 'live' button for the camera you want to install. This will open a livestream view of the cabin and roadside stream for that camera.

  • Hold the camera on the windshield without taking off the adhesive strip.

  • Switch to the in-cabin view and ensure that your face, in the standard driving position, is not obstructed by any objects like the rearview mirror or air freshener.

  • View the roadside livestream on your mobile app and ensure the horizon line (where the sky meets land) is centered in the footage.

  • Mark the camera position with a tape or any other tool.

  • Remove the adhesive and attach the camera to the marked position.

  • Once the camera is mounted, fine-tune the position of both imagers by loosening the camera locking screws with the provided hex key. The cameras can be swiveled up or down in small 'clicks'.

  • Once you have fine tuned the view on both imagers, tighten both camera locking screws.

  • Install the I/O cover on top of the camera and tighten the screw with the hex key.

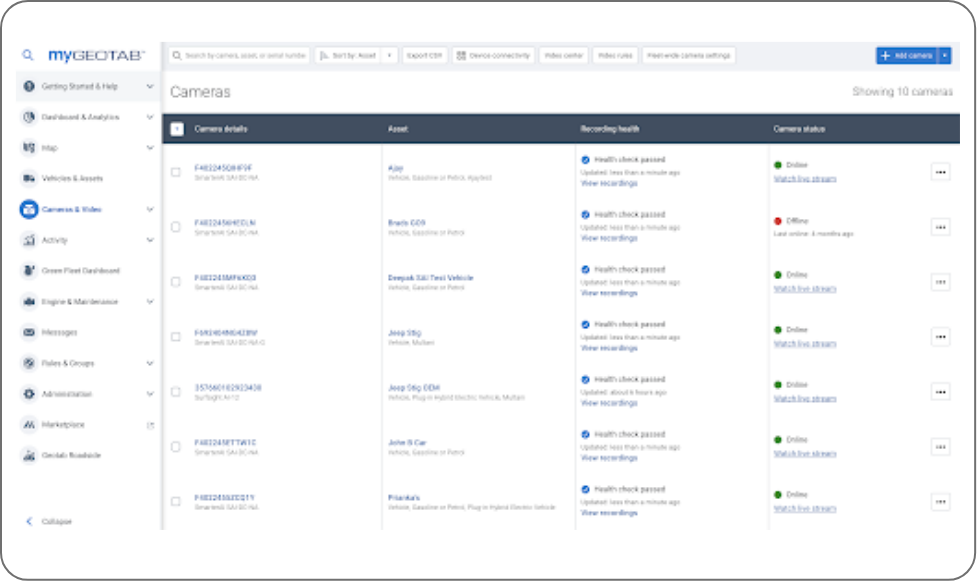

Web Dashboard

Manage and Operate your Dashcams from your GeoTab Dashboard.

  • The Dashcam is ready to be onboarded when the Cellular/Wi-Fi indicator blinks blue. If the indicator is solid green, skip to section 5.

  • Open the Smarter AI mobile app and tap the “+” icon to add your new camera.

  • Tap your camera serial number to connect. You can also press the camera’s physical button to highlight it in the app or tap the bell icon in the app to make the camera chime.

  • Connect the other end of the cable to the Smarter AI Dashcam G.
