Quick Start Guide

Smarter AI Dashcam G

Components

1. Tamper-proof sensor

2. MicroSD card slot

3. SIM card slot

4. Reset button

5. Power port

6. Extension camera port

7. NFC sensor

8. Camera locking screw (x2)

9. Noise cancelling microphone

10. Driver accessible programmable emergency button

11. Cellular/Wi-Fi indicator

12. Cabin camera with Infrared illuminators

13. Mounting kit

14. Speaker

15. Road camera

16. Antenna

17. I/O cover

18. Truck cable cap (optional)

What’s Inside the Box

Smarter AI Dashcam G

Smarter Cable G

Hex Key

Mounting Bracket

I/O Cover

Data Plan

Installation Guide

Setup Instructions

Connecting your Smarter AI Dashcam G to the vehicle.

  • Connect the IOX extension plug of the Smarter cable G to the Geotab GO9 IOX port.

  • Connect the power plug of the cable to the Smarter AI Dashcam G power port.

  • Plug the GeoTab GO9 device into your vehicle’s OBDII port.

Installing the Smarter AI Mobile App

  • Download and install the Smarter AI mobile app via the Android Play Store or the Apple App Store.

Logging in to your Smarter AI Mobile App

  • Login to the Smarter AI app with your login credentials.

Installing and Adjusting the Smarter AI Dashcam G

  • Please wait 4-5 min after plugging in the dashcam for the status LED to turn solid green. Once green, the dashcam is ready to be adjusted.

  • Attach the mounting bracket to the dashcam by aligning the 3 mounting holes’ position on the back of the camera against the mounting slots on the bracket. Slide the dashcam to the left to lock it in place. Do not take off the adhesive strip on the bracket.

  • Loosen the camera locking screws with the provided hex key. Once loosened, the road and cabin cameras can be swiveled up or down in small 'clicks'.

  • Hold the dashcam against the windshield without taking off the adhesive strip. The dashcam position should be within the area where you want to do the final mounting.

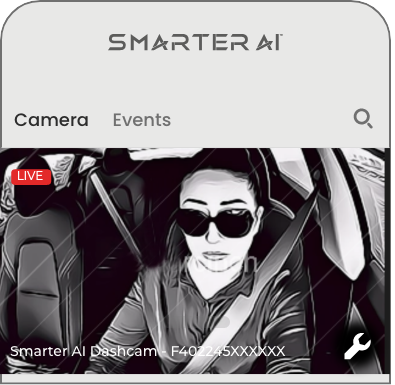

  • In the Camera tab of your mobile app, tap the wrench icon on the bottom right of the camera thumbnail. This will open the adjustment mode for the camera.

  • Once inside the adjustment mode. Tap on the cabin camera to open its live view. Follow the onscreen instructions to adjust the cabin camera. Sit up straight with your head and face
    fully visible in the camera view. Do not wear any cap or hat. No accessories should obstruct the
    camera’s view of your head and face.

  • After adjusting the cabin camera, tap the road camera to open its live view. Follow the instructions to adjust it by swiveling or moving the camera for the best placement. Adjust the road camera until the horizon (where the sky meets land) is centered between the 2 red lines.

  • Once you have completed the adjustment, mark the camera position with a tape or any other tool.

  • Tighten both camera locking screws with the provided hex key.

  • Remove the adhesive from the camera mount and attach the camera to the marked position.

  • Install the I/O cover on top of the camera and tighten the screw with the hex key.

  • Hide any visible wiring by the placing the wire under the roof liner and behind the driver side A Pillar.

Web Dashboard

  • Manage and Operate your Dashcams from your GeoTab Dashboard.
