Quick Start Guide

Smarter AI Dashcam G

Components

1. Tamper-proof sensor

2. MicroSD card slot

3. SIM card slot

4. Reset button

5. Power port

6. Extension camera port

7. NFC sensor

8. Camera locking screw (x2)

9. Noise cancelling microphone

10. Driver accessible programmable emergency button

11. Cellular/Wi-Fi indicator

12. Cabin camera with Infrared illuminators

13. Mounting kit

14. Speaker

15. Road camera

16. Antenna

17. I/O cover

18. Truck cable cap (optional)

What’s Inside the Box

Smarter AI Dashcam G

Smarter Cable G

Hex Key

Mounting Kit

I/O Cover

Data Plan

Installation Guide

Setup Instructions

Registering a Smarter AI user account.

Installer Sign In

If you are installing a Smarter AI Dashcam G for the first time, you can tap the 'I am an installer' link and sign in with your Google or Microsoft account.

Register as a Fleet Admin

  • If you are a new fleet admin, you would have received an email from Smarter AI to set up your account. Please follow the instructions in the email to register your Fleet Admin account.

  • If you are an existing fleet admin, you do not need to register again and can use your existing credentials.

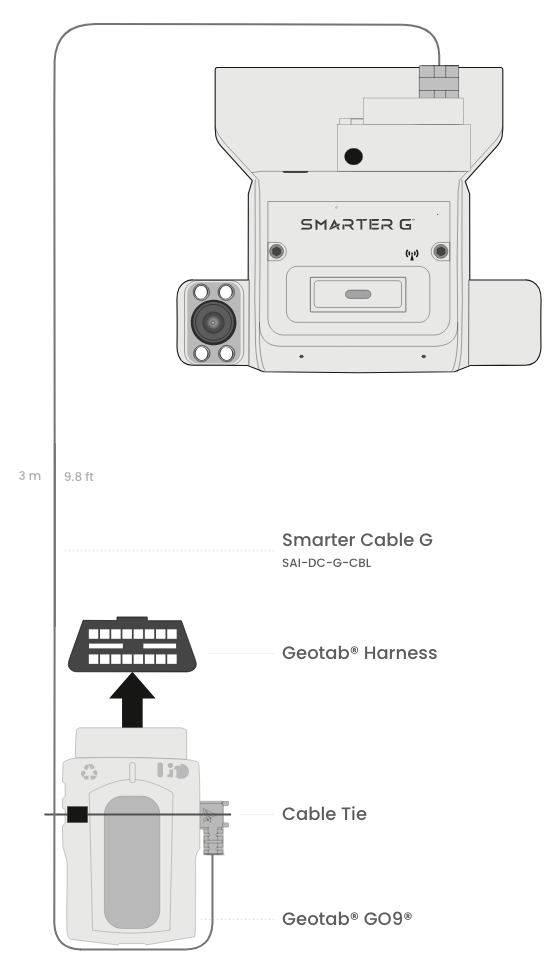

Connecting your Smarter AI Dashcam to the vehicle.

  • Connect one end of the Smarter cable G to the Geotab GO9 IOX port.

  • Connect the other end of the cable to the Smarter AI Dashcam G.

  • Plug the GeoTab GO9 device into your vehicle’s OBDII port.

Installing the Smarter AI Mobile App

  • Download and install the Smarter AI mobile app via the Android Play Store or the Apple App Store.

Logging to your Smarter AI Mobile App

  • Tap the 'I am an installer' link and sign in with your Google or Microsoft account.

Activating the camera

  • The Dashcam is ready to be onboarded when the Cellular/Wi-Fi indicator blinks blue. If the indicator is solid green, skip to section 6.

  • Open the Smarter AI mobile app and tap the 'Activate Camera' button to activate a new camera.

  • Scan the S/N barcode, and it will automatically fetch the serial number of the camera. Once it's done, you can tap the next arrow button.

Camera Adjustment

  • Attach the camera mount to the camera by aligning the 3 mounting holes’ position on the back of the camera against the mounting slots on the mount. Slide the camera to the left to lock it in place.

  • Loosen the camera locking screws with the provided hex key. Once loosened, the camera imagers can be swiveled up or down in small 'clicks'.

  • Hold the camera on the windshield without taking off the adhesive strip. The camera position should be within the area where you want to do the final mounting.

  • In the Cameras tab of your mobile app, tap the 'Adjust' button on the bottom right of the camera thumbnail. This will open the adjustment mode for the camera.

  • Once inside the adjustment mode. Tap the roadside imager to open its live view. Follow the onscreen instructions to adjust the roadside imager. You can swivel the imager up or down or move the entire camera to get the right view.

  • Once your roadside adjustment is done. Tap on the cabin imager to open its live view. Follow the onscreen instructions to adjust the cabin imager. You can swivel the imager up or down or move the entire camera to get the right view.

  • Once you have completed the adjustment, mark the camera position with a tape or any other tool.

  • Tighten both camera locking screws with the provided hex key.

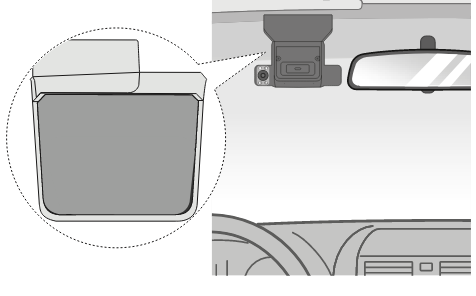

  • Remove the adhesive from the camera mount and attach the camera to the marked position.

  • Install the I/O cover on top of the camera and tighten the screw with the hex key.

  • Hide any visible wiring by the placing the wire under the roof liner and behind the driver side A Pillar.

Web Dashboard

  • Manage and Operate your Dashcams from your GeoTab Dashboard.
